Performance Tuning

This page provides a general process for BladePipe DataJob performance tuning.

Issue​

The latency of BladePipe DataJob is high. The performance needs to be optimized to improve the efficiency.

Possible Causes and Solutions​

  1. Check the task exception:
    Click Sync Settings > Exception Log to check whether there is a task exception recently. If so, click View Exception Stack and resolve the exception.

  2. Check GC information:

    1. Go to the Details page of the DataJob. Click More Metrics next to Performance above the monitoring chart at the bottom of the page.
    2. Click Resource tab to view the monitoring charts of JVM GC Count and JVM GC Time. If the Full GC time is excessively long or the Full GC number is over two, it is deemed that there is a GC-related performance issue.

  • If there is a GC-related performance issue, follow the steps:

    • Modify parameters for Full Data：

      1. Go to the Details page of the DataJob. Click Functions > Modify Parameters.
      2. Change the values of the parameters fullRingBufferSize and fullBatchSize to 50% of the original values.
      3. Change the value of the parameter writeParallel to 200% of the original value.
      4. Click Save in the upper-right corner of the page.

    • Modify parameters for Incremental:

      1. Go to the Details page of the DataJob. Click Functions > Modify Parameters.
      2. Change the values of the parameters increRingBufferSize and increBatchSize to 50% of the original values.
      3. Change the value of the parameter writeParallel to 200% of the original value.
      4. Click Save in the upper-right corner of the page.

  • If there isn't a GC-related performance issue, try the following operations:

    1. Go to the Details page of the DataJob. Click Functions > Modify Parameters. Change the values of the parameters increBatchSize and writeParallel to improve the efficiency of writing data to Target.

    2. If the writing efficiency isn't improved after the parameters are modified, there may be a bottleneck in writing data to Target. Follow the steps to see whether there's such a bottleneck.

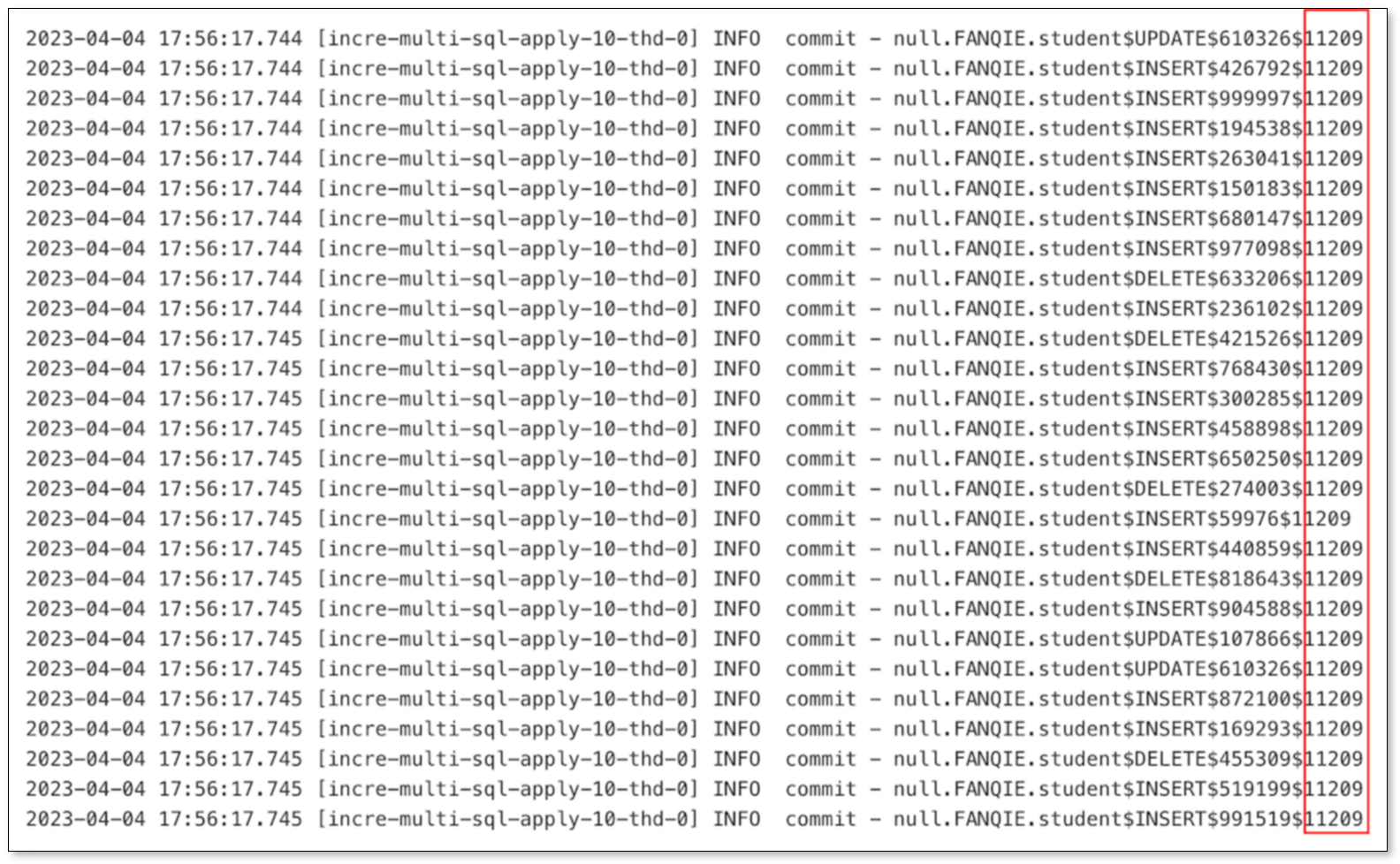

      Go to the Details page of the DataJob. Click Log under Incremental tab, then click apply_commit.log tab. The last column is the data write elapsed time (ms). If the elapsed time is near 10s, it is considered that there is a bottleneck in writing data to Target. writeParallel

    3. Check whether there's a hardware limitation. View the CPU usage, CPU load and other information of the worker. If the resource utilization is high, consider upgrading the hardware of the worker.

    4. Try to upgrade the task specification. For more information, see Adjust Specification.
